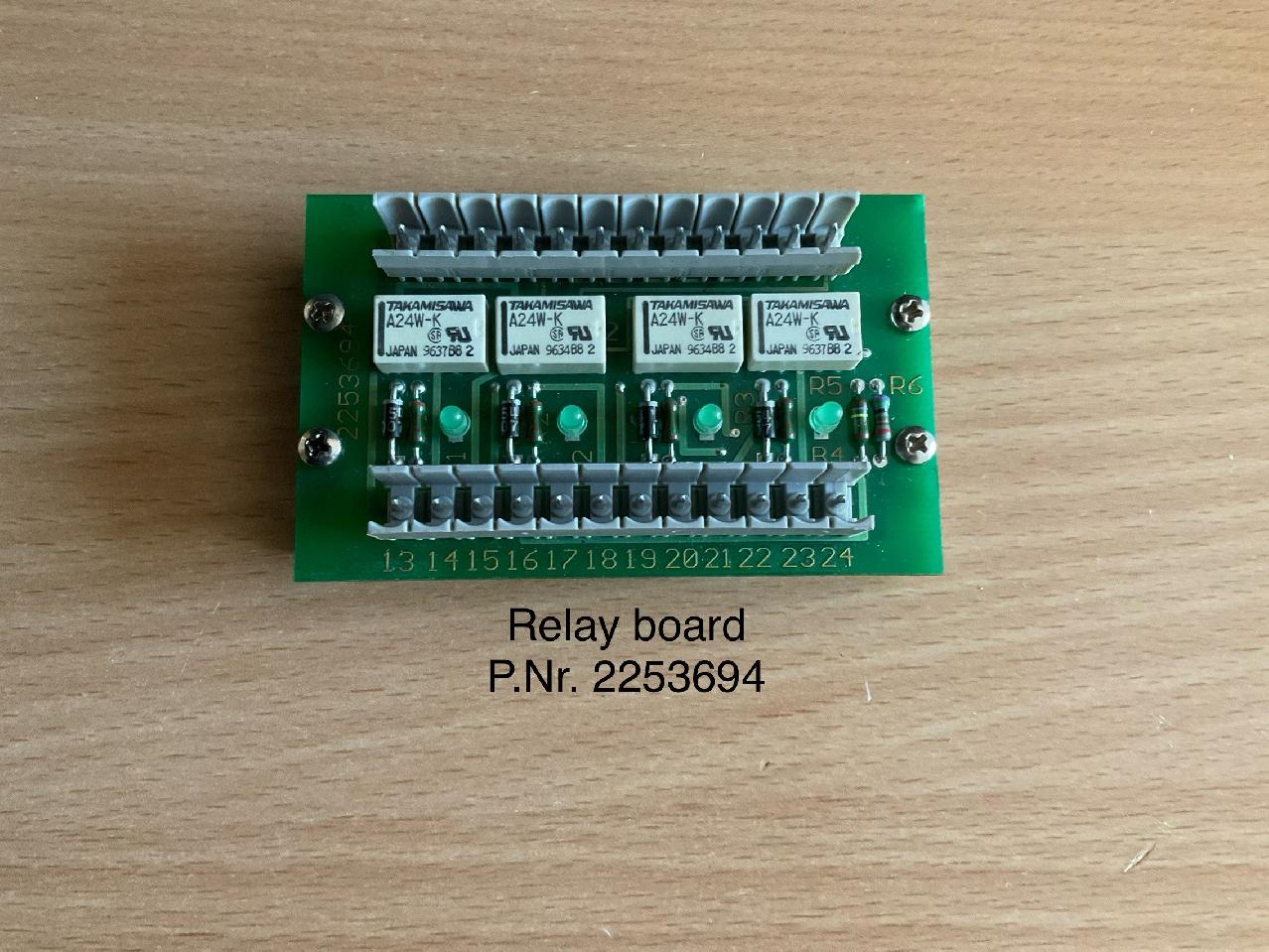

Grove 2253694 - RELAY CIRCUIT BOARD

Search for Crane Part number

(click on image to open PDF document)

Figures in which the part appears:

Also known as:
2253694, 02253694, 002253694

Parts for Grove GMK 5160, Figure 3008067-ETL:
Part Number 2253694: RELAY CIRCUIT BOARD

Pos nr	Part number	Description	Weight in kg
1	1926018	AUXILIARY RELAY	0.001
2	1926073	AUXILIARY RELAY	0.380
3	2217734	AUXILIARY CONTACTOR	0.260
4	1924178	AUXILIARY SWITCH BLOCK	0.05
5	1924179	VARISTOR	0.140
6	2256063	ELECTRONIC TIME RELAY	0.260
007	2210086	FUSE BOX	0.075
8	2210087	DOUBLE BRIDGE	0.005
9	2210088	FLAT FUSE 10 A	0.005
10	2210089	FLAT FUSE 15 A	0.005
11	1680206	INSULATING SLEEVE 6,3 X 0.5-4 MM2
12	2210196	FLAT FUSE 3 A	0.005
13	2212205	FLAT FUSE 20 A	0.001
14	1926579	HOUSING	0.015
15	1680204	RECEPTACLE	0.005
16	2257093	BUSH	0.001
17	1574266	TOGGLE SWITCH	0.034
18	0554246	CABLE CLIP	0.002
19	1373412	PINTYP CABLE-SOCKET	0.001
20	2249640	RELAY CIRCUIT BOARD	0.04
21	2210182	THROUGH TERMINAL	0.005
22	2217774	RELAY CIRCUIT BOARD	0.04
23	1205297	END CLAMP	0.005
24	1370458	CABLE (PER METER)	0.060
25	1370445	CABLE (PER METER)	0.009
26	2214703	CABLE (PER METER)	0.01
27	2214704	CABLE (PER METER)	1
28	2210566	CODING PIN	0.001
29	1374645	HEXAGON SOCKET HEAD CAP SCREW	0.001
30	1680288	HEXAGON NUT	0.001
31	0435017	TOOTH LOCK WASHER
32	2253694	RELAY CIRCUIT BOARD	0.04
33	2210187	PARTITION
34	2210184	TRANSVERSE BRIDGE	0.005
35	2210185	SPRING CONTACT STRIP	0.12
36	3005623	MOUNTING PIECE FOR INSTRUMENT
37	2251114	THROUGH TERMINAL
38	2251115	CROSS-CONNECTION	0.001
39	1924218	SWITCH BLOCK	0.6
